Pressure

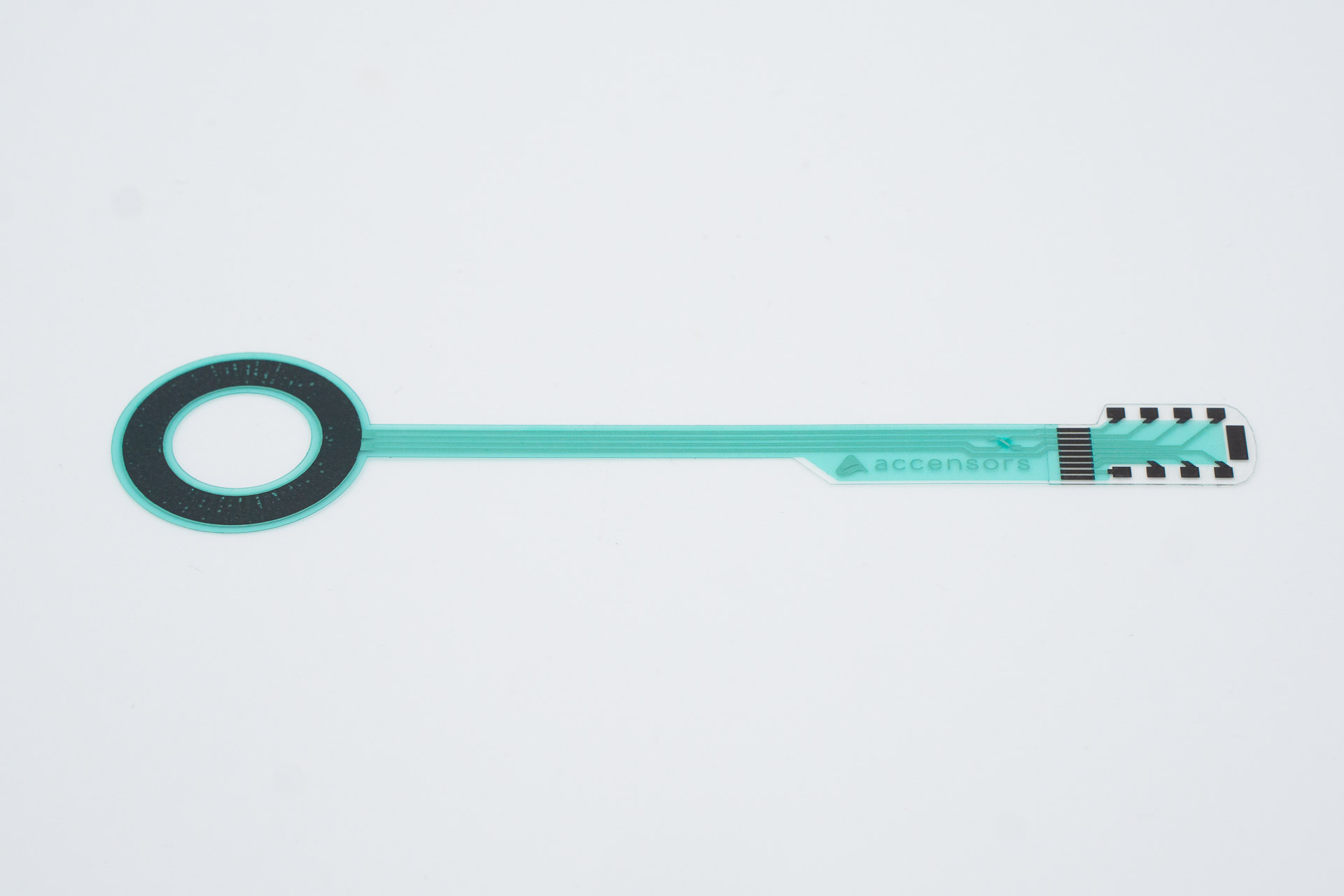

The Stripe foil sensor pressure-201 is a foil sensor with an IDES structured layout with resistive force detection. The layout is designed to fit M16 screws. Foil carrier is made of transparent PET material with a printed insulation. A connection between sensor and measurement electronics can be established via our Device Pressure D-200 or ZiF-connector. Contact pads are covered with an oxidation protection. The data given refers to the use of the sensor in combination with the Device Pressure D-200. The measuring output will display the screw force in Ohm.Product includes:1 x Stripe foil sensor pressure-201Datasheet:Factsheet_addsensors_stripe_Screw-force_S-201.pdf

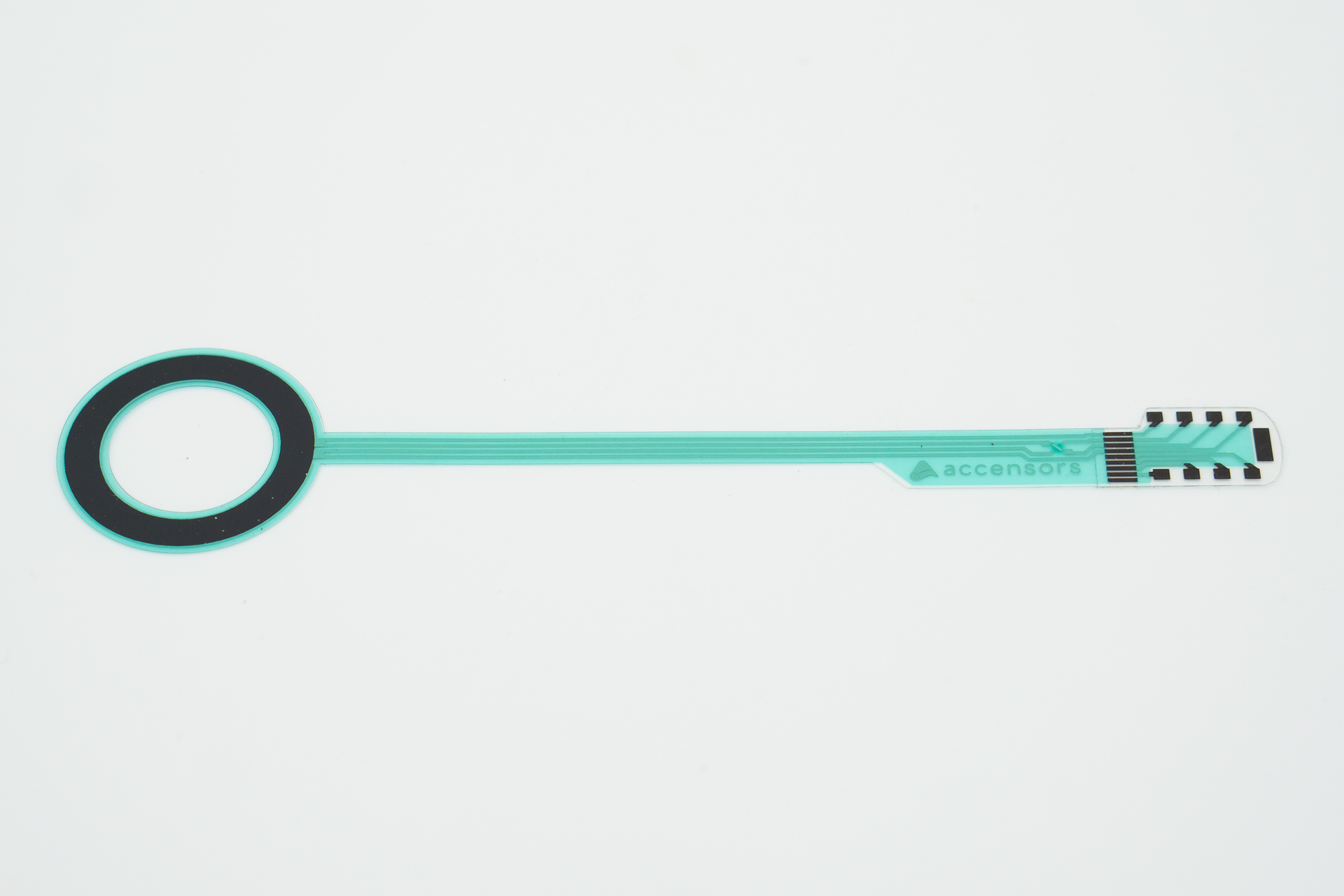

The stripe foilsensor pressure-201 is a foil sensor with an IDES-structured layout with resistive force detection. The layout is designed to accommodate M16 screws. The foil carrier is made of transparent PET material with printed insulation. A connection between the sensor and the measuring electronics can be established via our Device Pressure D-200 or ZiF connector. The contact surfaces are provided with oxidation protection. The specified data refer to the use of the sensor in conjunction with the device pressure D-200. The screw force is displayed in ohms at the measuring output.Product includes:1 x Stripe foil sensor pressure-202Datasheet:Factsheet_addsensors_stripe_Screw-force_S-202.pdf
