Stripe foil sensor pressure-202
Product information "Stripe foil sensor pressure-202"

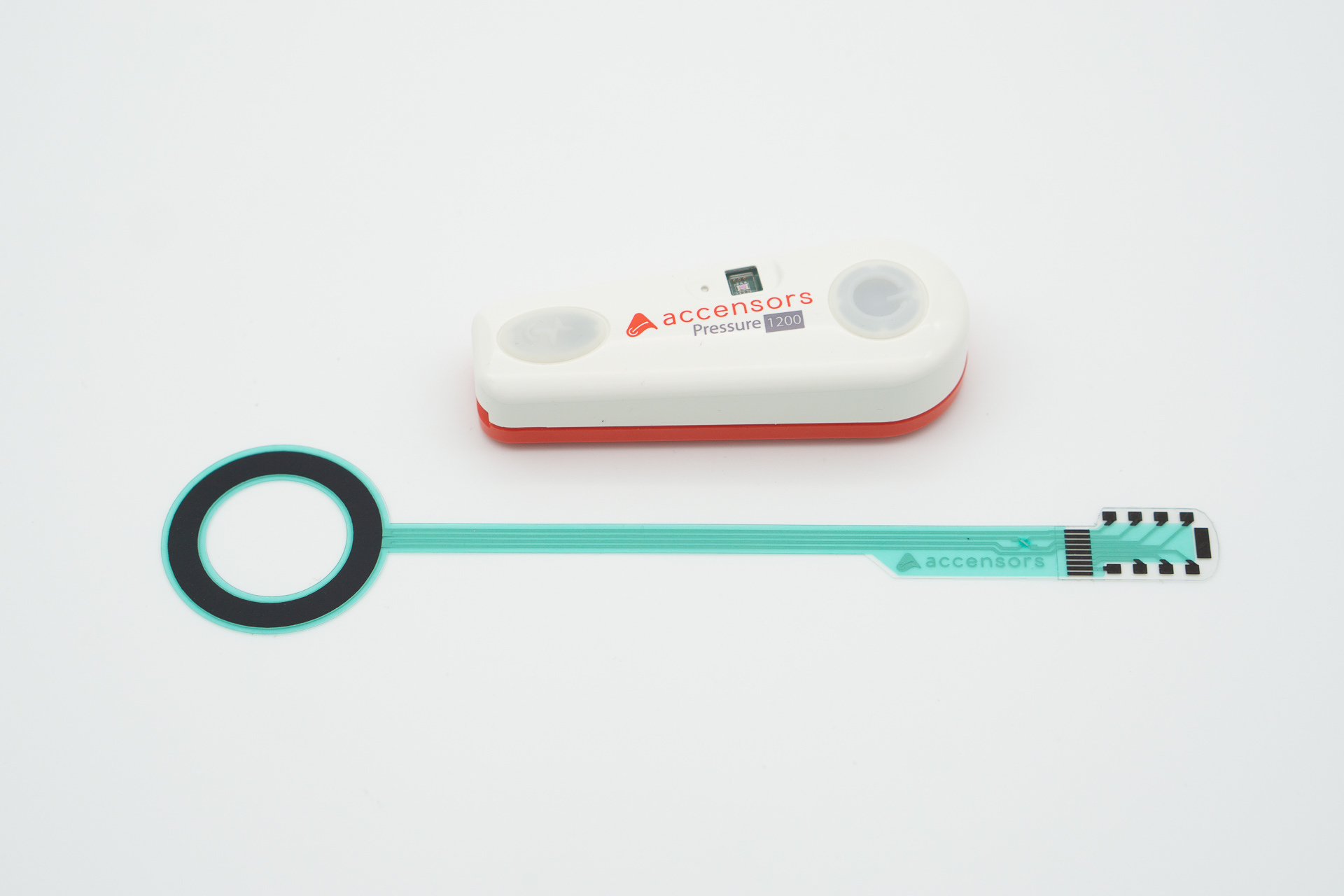

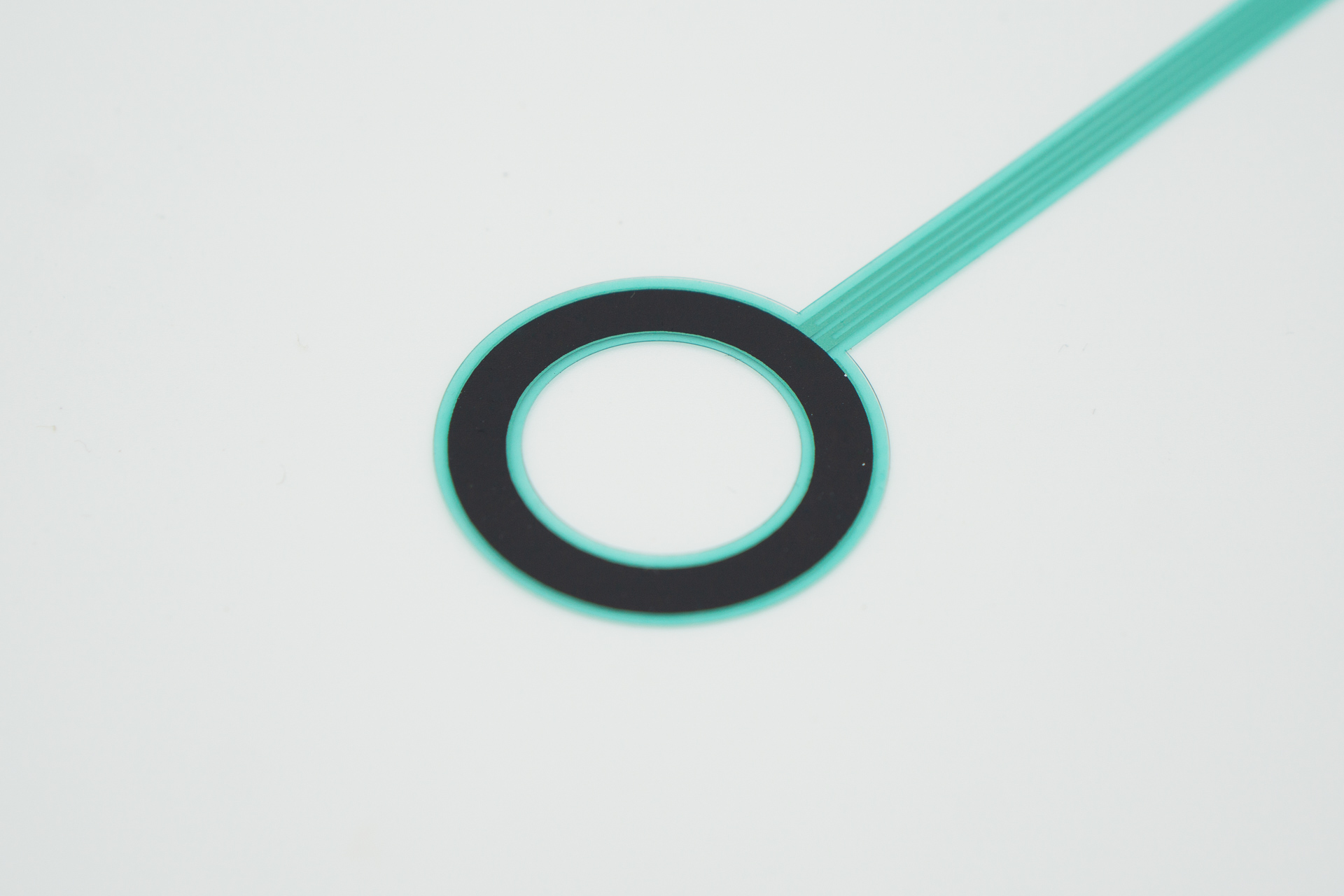

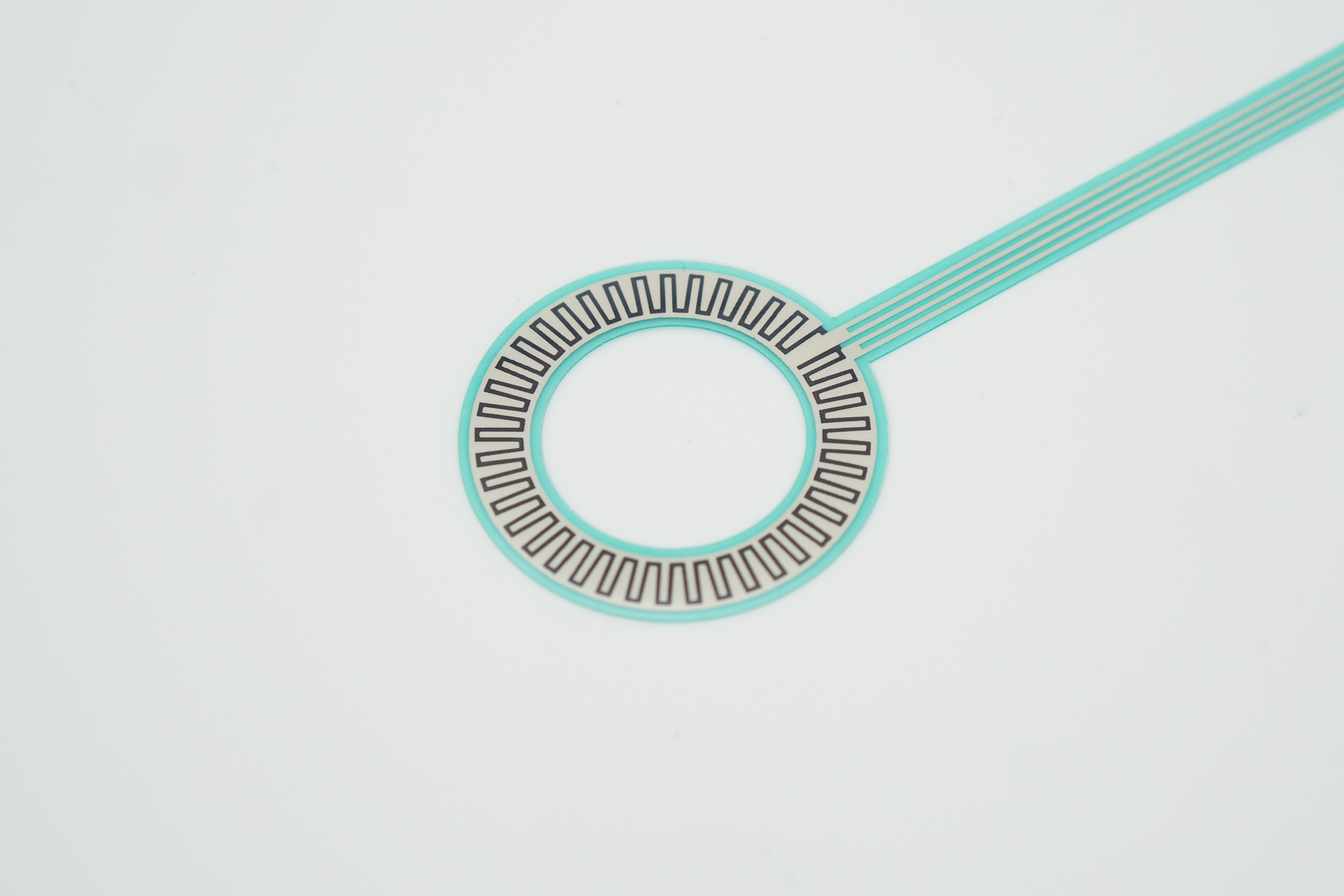

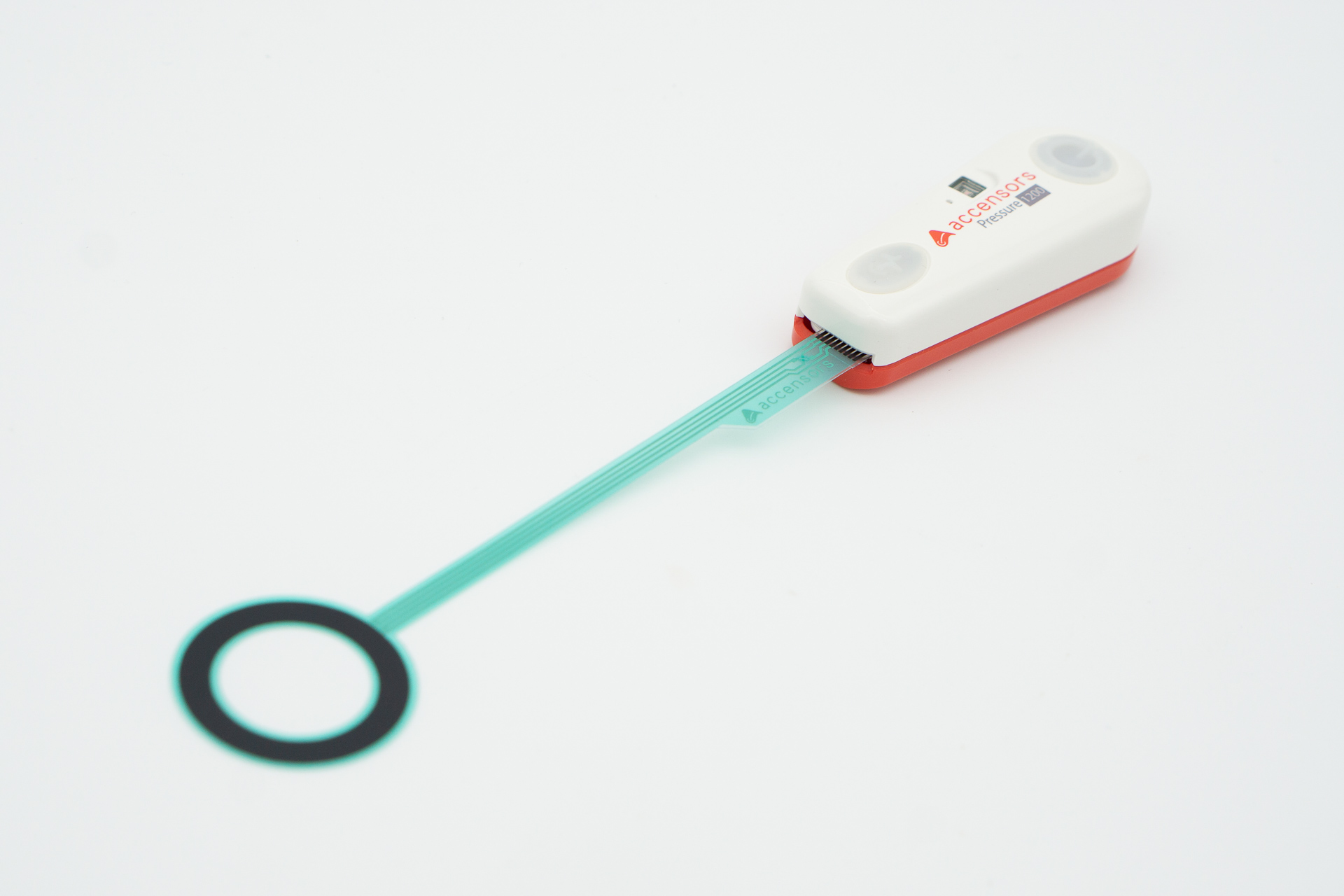

The stripe foilsensor pressure-201 is a foil sensor with an IDES-structured layout with resistive force detection. The layout is designed to accommodate M16 screws. The foil carrier is made of transparent PET material with printed insulation. A connection between the sensor and the measuring electronics can be established via our Device Pressure D-200 or ZiF connector. The contact surfaces are provided with oxidation protection. The specified data refer to the use of the sensor in conjunction with the device pressure D-200. The screw force is displayed in ohms at the measuring output.
Product includes:
1 x Stripe foil sensor pressure-202
Datasheet:
Factsheet_addsensors_stripe_Screw-force_S-202.pdf
Product includes:
1 x Stripe foil sensor pressure-202
Datasheet:
Factsheet_addsensors_stripe_Screw-force_S-202.pdf
